For Loop Action

For Loop Action indicates the start of an execution loop that repeats until the condition evaluates to false. It combines a condition check and a step expression that is evaluated at each iteration, making it suitable for counter-based or condition-driven loops.

warning

Never use this action without a corresponding Loop Next Action to close the loop.

Appearance

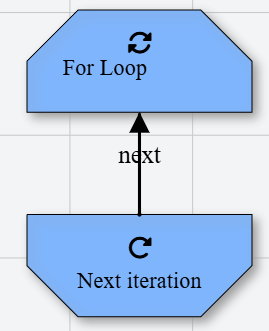

In Talos, For Loop Action appears as a hexagon node with a rotate icon.

Properties

As all Actions, For Loop Action has a few unique properties that are essential for its functionality.

Common properties

Common properties inherited from Action.

Display NameString

This is the display name of the action.

By customizing this property, you can differentiate between same type of actions.

Action IDString

Indicates the unique ID of this action.

This property is Read only and it is not customizable

DisabledBoolean

If set to true, this action is considered disabled and will not be executed.

Iterator VariableString

Sets the name of the variable used to store the loop iteration counter.

ConditionExpression

Sets the condition for the for loop termination.

See more about Talos Scripting language & Expressions

tip

The condition is evaluated at the start of each iteration. The loop continues as long as the condition evaluates to true. When it evaluates to false, the loop terminates.

Examples

${index} < 10
${index} != ${maxIterations}
${list}.Length() > 0

Step ExpressionExpression

Sets the expression to be evaluated for each iteration of the loop.

See more about Talos Scripting language & Expressions

tip

This expression is evaluated at the end of each loop iteration, typically used to update the iterator variable.

Examples

${index} = ${index} + 1
${counter} = ${counter} - 1
