Add Formula To Cell

Add Formula To Cell Action is a spreadsheet action that enables the user to insert a formula into a specific cell of an open Excel (.xlsx) variable file. The formula is written to the cell but not evaluated or applied at the time of insertion. A typical use case, is dynamically populating formula logic during an automation run.

Appearance

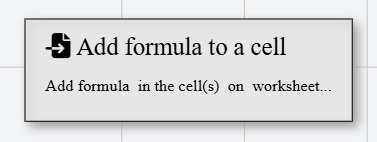

In Talos, Add Formula To Cell appears as a standard rectangular node with a file-import icon, indicating an operation that writes content into an existing Excel file.

Properties

As with all Actions, Add Formula To Cell Action has a set of unique properties required for its functionality.

Common properties

Common properties inherited from Action.

Display NameString

This is the display name of the action.

By customizing this property, you can differentiate between same-type actions.

Action IDString

Indicates the unique ID of this action.

This property is Read only and it is not customizable

DisabledBoolean

If set to true, this action is considered disabled and will not be executed.

File VariableString

The variable referencing the open .xlsx file to which the formula will be added.

This must refer to a variable that holds an already-opened Excel document. The variable is typically populated by a preceding Open Spreadsheet action.

tip

Ensure the file is open before this action executes. Referencing a closed or uninitialized variable will result in a runtime error.

WorksheetString

The name of the worksheet within the file where the target cell is located.

Provide the exact worksheet (tab) name as it appears in the Excel file. This value is case-sensitive.

Examples

Sheet1
Summary
Q3 Report

CellString

The cell or range of cells where the formula will be inserted.

Accepts a single cell reference, a comma-separated list of cells, or a range notation.

Examples

// Single cell
A1

// Comma-separated list
A1, B2, C3

// Range
A1:A10

note

When targeting multiple cells, the same formula will be inserted into each specified cell.

FormulaString

The formula string to be inserted into the target cell(s).

Provide a valid Excel formula string. The formula should begin with = as it would appear in Excel.

warning

The formula is inserted but not applied. It will not be evaluated until the file is opened or recalculated in a spreadsheet application.

Examples

=SUM(A1:A10)
=IF(B2>100, "High", "Low")
=CONCATENATE(C1, " ", D1)
=TODAY()
